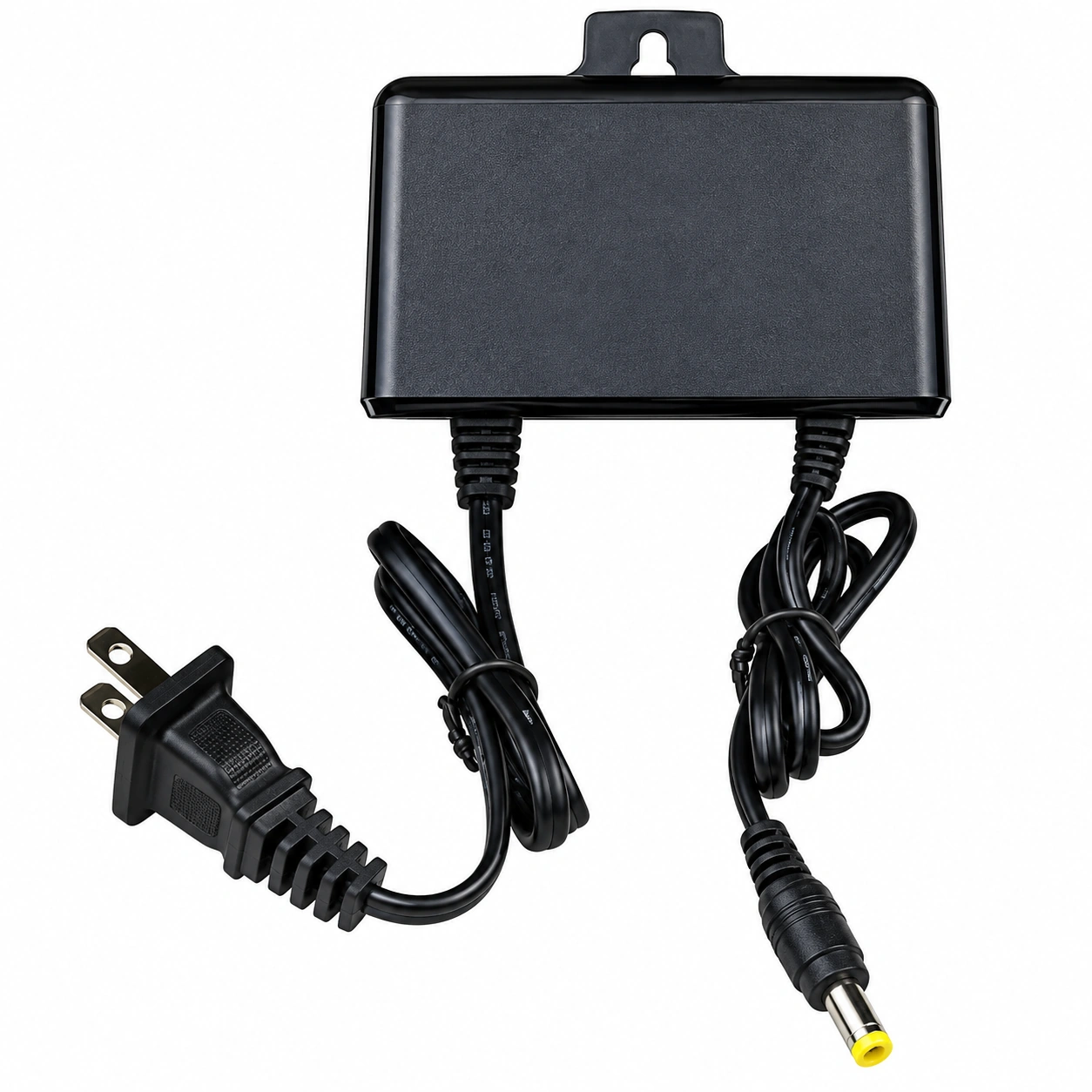

ORASIX 12V 2A NORMAL CCD CCTV ADAPTER

৳ 150

Key Features

CCD 12V 2A Normal CCTV Adapter

Stable Indoor Power Supply Unit

12V 2A

Power Output

Stable 12V DC (24W Capacity)

Circuit Protection

Short Circuit & Overload Safe

Input Voltage

Universal 100V-240V AC

Connector Type

Standard 5.5mm x 2.1mm Jack

Application Purpose

CCTV Security Cameras & DVRs

Prevents video flickering and signal loss during 24/7 monitoring

✓

Power Reliability: Engineered with high conversion efficiency and complete overload/overvoltage safeguarding.

Specifications
Details
Reviews
Videos

Specifications

Overview

Product Specifications

Power Adapter

Type	CCTV Power Adapter (Indoor / Normal Type)
Output Voltage	12V DC (Regulated)
Output Current	2A (2000mA)
Output Power	24 Watts
Input Voltage	AC 100-240V, 50-60Hz (Universal)
Input Current	0.8A Max
Connector Type	DC Barrel Jack (5.5mm x 2.1mm)
DC Cable Length	Approximately 80cm - 150cm
AC Cable Length	Approximately 50cm - 100cm
Housing Material	ABS Plastic (Black / White)
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to +85°C
Output Ripple & Noise	≤45mVp-p
Efficiency	78% - 88%
Protection Features	Short Circuit, Overload, Overvoltage (Auto Recovery)
Certifications	CE, RoHS (on quality units)
Warranty	Typically 1-3 months (varies by seller)
Compatibility	CCD / CMOS CCTV Cameras, DVRs, LED Strips, Routers, Set-top Boxes

✓

Verified Info: Universal 12V 2A CCTV Power Adapter featuring short circuit protection, 5.5mm x 2.1mm DC barrel jack, and wide compatibility with surveillance systems.

Product Details

Product Overview

CCD 12V 2A Normal CCTV Adapter

Complete Specifications & Features

ADAPTER

The CCD 12V 2A Normal CCTV Adapter is a reliable indoor power supply designed specifically for CCTV cameras, DVRs, and other security equipment. Featuring a stable 12V DC output with short circuit and overload protection, this adapter ensures your surveillance system operates continuously without video flickering or signal loss.

Stable Power for Your Surveillance System: The CCD 12V 2A Normal CCTV Adapter is a purpose-designed power supply for indoor security camera installations. Unlike generic chargers that may cause video interference, this adapter provides clean, regulated DC power that prevents image flickering and signal loss during 24-hour monitoring cycles. Whether you are setting up a home security system or expanding an office surveillance network, this adapter delivers reliable performance at an affordable price.

Why Choose the CCD 12V 2A Normal Adapter?

Stable 12V DC Output for Clean Video: The adapter provides a regulated constant voltage output of 12V DC with minimal ripple noise (≤45mVp-p). This clean power supply ensures your CCTV camera produces stable, flicker-free video without interference lines or artifacts.
24W Power Capacity: With 2A current output and 24 watts of total power, this adapter is capable of powering one to two standard CCTV cameras simultaneously. Many installers use a single 2A adapter for two cameras by splitting the output.
Full Circuit Protection: Built-in protection circuits safeguard both the adapter and your expensive camera equipment:
- Short Circuit Protection: Automatically shuts down output in case of short circuit; recovers when fault is cleared
- Overload Protection: Prevents damage when connected devices draw excessive current
- Overvoltage Protection: Protects against voltage spikes that could damage sensitive camera electronics
Universal Input Voltage: The adapter accepts AC input from 100V to 240V at 50-60Hz, making it compatible with power grids worldwide. This is especially useful for regions with unstable voltage fluctuations.
Standard 5.5mm x 2.1mm Connector: Features the industry-standard DC barrel jack (5.5mm outer diameter, 2.1mm inner diameter), which is compatible with the vast majority of CCD and CMOS security cameras on the market.
Efficient Operation with Low Heat: With efficiency ratings of 78% to 88%, this adapter converts more input power to usable output and less to wasted heat. This results in cooler operation and lower electricity bills for 24/7 surveillance applications.
Normal (Indoor) Design: The "Normal" type design features a standard ABS plastic housing (non-waterproof) suitable for indoor installations. The compact size allows easy placement behind DVRs, near routers, or inside equipment cabinets.

Technical Specifications for Professional Installers:

Parameter	Value
Output Regulation	±5% to ±10% of rated voltage
Startup Time	≤2 seconds @ 120VAC / ≤1 second @ 230VAC
Hold-up Time	≥10ms @ 120VAC / ≥20ms @ 230VAC
Inrush Current	2A typical @ 120VAC
Dielectric Strength	Input-Output: 1500VAC for 1 minute
Operating Humidity	20% - 90% RH (non-condensing)

Ideal Applications:

CCTV Security Cameras: Powers indoor CCD/CMOS bullet, dome, and turret cameras
Digital Video Recorders (DVRs): Suitable for small 4-channel DVR units
LED Lighting: 12V constant-voltage LED strip lighting
Networking Equipment: Routers, switches, and modems requiring 12V input
Set-top Boxes: Cable TV and satellite receivers
Audio Equipment: Small mixers and amplifiers

What's in the Box:

1 x CCD 12V 2A Power Adapter (Normal Type)
1 x AC Power Cord (plug type varies by region)
(DC extension cables or splitter cables are typically sold separately)

Important Notes for Buyers:

Indoor Use Only: The "Normal" adapter is not waterproof and should only be used indoors or in weather-protected locations.
Check Your Connector Size: While 5.5mm x 2.1mm is standard, some cameras use 5.5mm x 2.5mm — verify your camera's DC jack before purchasing.
Center Polarity: Most CCTV cameras use Center Positive polarity — confirm your device's requirement.
Do Not Overload: This adapter provides 24W maximum — do not exceed 2A total current draw.
Ventilation: Place the adapter in a well-ventilated area to prevent overheating during continuous 24/7 operation.

✓

Buy CCD 12V 2A Normal CCTV Adapter for indoor security cameras. Stable 12V DC output, short circuit & overload protection, 5.5x2.1mm connector. Perfect for CCTV cameras and DVRs. Available now.
