Specifications

Overview

Product Specifications

4CH NVR

IP Camera Input	4-ch Up to 4 MP resolution
Resolution	4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Decoding Capacity	1-ch @ 6 MP / 4-ch @ 1080p
Record Mode	H.265+/H.265/ H.264+/H.264
Ethernet Port	1, RJ-45 10/100Mbps self-adaptive Ethernet interface
Network Function	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP
Internal HDD	Up to 6TB capacity for each disk
eSATA	1 SATA interface
USB	2 × USB 2.0
Power Supply	12 VDC
Power Consumption	≤ 10W
Dimensions	260 × 225 × 48 mm (10.2" × 8.9" × 1.9")
Net Weight	≤ 1 kg (2.2 lb)
Manufacturing Warranty	1 Year

✓

Verified Info: 4-channel NVR supporting up to 4MP IP camera input, 6MP/1080p decoding, H.265+/H.265/H.264+/H.264 recording, 6TB HDD capacity per disk, 10/100Mbps Ethernet, SATA interface, USB 2.0 and 12VDC power supply with 1-year manufacturing warranty.

Product Details

Description

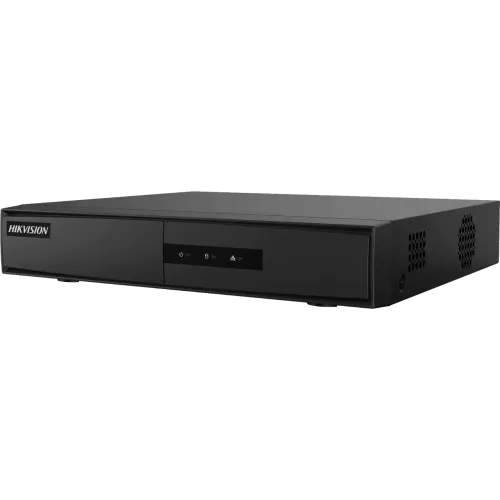

Hikvision DS-7104NI-Q1/M 4 Channel Mini 1U NVR

Network Video Recorder Solution

NVR

Hikvision DS-7104NI-Q1/M 4 Channel Mini 1U NVR

The Hikvision DS-7104NI-Q1/M 4 Channel NVR comes with H.265+/H.265/H.264+/H.264 video compression. This Network Video Recorder offers up to 40 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth. It supports up to 4-ch network camera inputs. It has up to 4-ch 1080p decoding capability. This NVR comes with HDMI and VGA simultaneous output. It supports output resolution of 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, and 1024 × 768/60Hz. It is also compatible with third-party network cameras. The Hikvision DS-7104NI-Q1/M comes with 1 SATA interface and it supports up to 6TB capacity. It has 2 × USB 2.0. The Hikvision DS-7104NI-Q1/M 4 Channel NVR comes with a 1-year warranty.

✓

Secure your premises with the Hikvision DS-7104NI-Q1/M 4 Channel NVR featuring advanced H.265+ compression and 6TB storage support.
