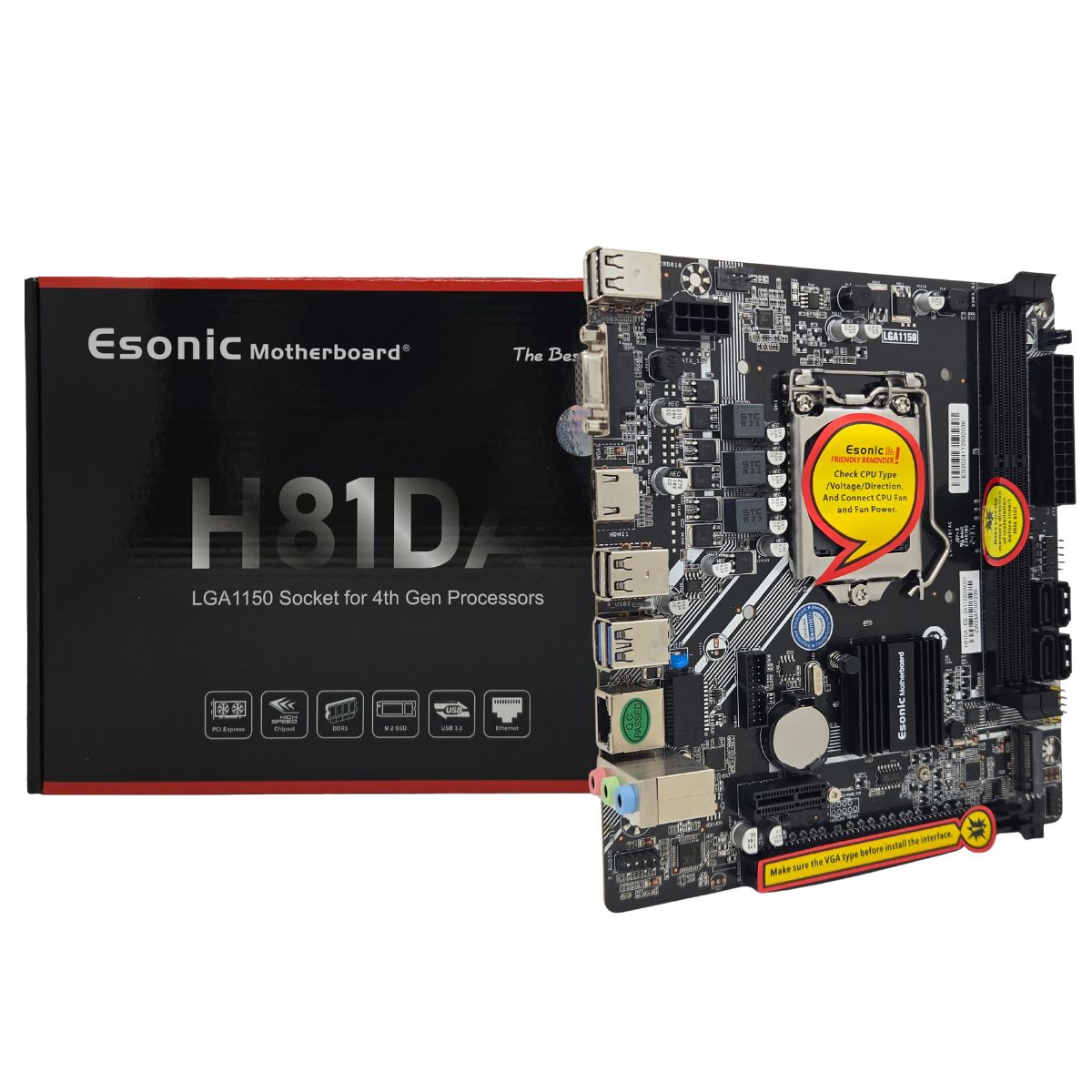

The Esonic H81DA (and H81DA1) is a budget-oriented Micro-ATX motherboard designed for users building affordable desktop PCs for office work, home use, or light multimedia. Built on the reliable Intel H81 chipset, it offers compatibility with Intel's 4th Generation Haswell processors, providing a solid foundation for cost-effective system builds .
Processor & Chipset
At the heart of this motherboard is the Intel H81 chipset, which supports Intel's LGA1150 processors . This includes 4th Generation Core i7, i5, i3, Pentium, and Celeron CPUs . The platform supports Intel Turbo Boost Technology 2.0 for enhanced performance when needed .
DDR3 Memory Support
The H81DA is equipped with two DIMM slots supporting Dual-Channel DDR3 memory architecture . It natively supports speeds of 1066MHz, 1333MHz, and 1600MHz . With a maximum capacity of 16GB, this motherboard provides adequate memory bandwidth for multitasking, office applications, and light content creation .
M.2 Storage (H81DA1 Variant)
A key distinguishing feature of the H81DA1 model is the inclusion of an M.2 NVMe slot . This supports 2242 form factor SSDs, allowing for faster storage options without the need for SATA cables . The base H81DA model does not include this M.2 slot .
Modern Connectivity
Despite its budget positioning, the motherboard includes essential modern features:
USB 3.0 Ports: Four USB 3.0 ports are available in total (2 on the rear I/O and 2 via internal header), offering data transfer speeds up to 5Gbps—ideal for fast external storage devices .
SATA 6Gb/s Storage: Four SATA 3.0 ports provide high-speed connectivity for modern SSDs and HDDs, ensuring quick boot times and fast file transfers .
PCIe 3.0 Support: The PCIe x16 slot runs at Gen 3.0 speeds when paired with compatible CPUs, allowing for decent graphics card performance .
Display Outputs - HDMI & VGA
The motherboard leverages Intel HD Graphics integrated into the CPU, providing both HDMI and VGA outputs . This dual-display capability makes it an excellent choice for office workstations requiring dual monitors, home theater PCs (HTPCs) connecting to modern TVs via HDMI, or legacy systems using older VGA monitors .
Expansion Slots
For expansion, the H81DA includes a PCIe x16 3.0/2.0 slot for a dedicated graphics card, as well as a PCIe x1 2.0 slot for other add-in cards like Wi-Fi adapters or sound cards . This allows users to upgrade the system's 3D performance for light gaming or professional applications.
Network & Audio
Onboard audio is handled by a Realtek ALC662 chip, providing 5.1 or 6-channel surround sound for an immersive media experience . Networking is covered by a Realtek Ethernet controller, offering a standard 100Mbps connection, with some variants optionally supporting faster Gigabit Ethernet .
Build Considerations
The Micro-ATX form factor (215 x 170mm) makes it compatible with a wide range of compact and standard PC cases . It requires standard 24-pin ATX and 4-pin 12V power connectors, making it easy to pair with most standard power supplies .
Note: When purchasing, verify whether the model includes the M.2 slot (H81DA1 includes it; base H81DA typically does not) . This motherboard is designed for 4th Generation Intel processors only and is not compatible with 6th Gen or newer CPUs .
